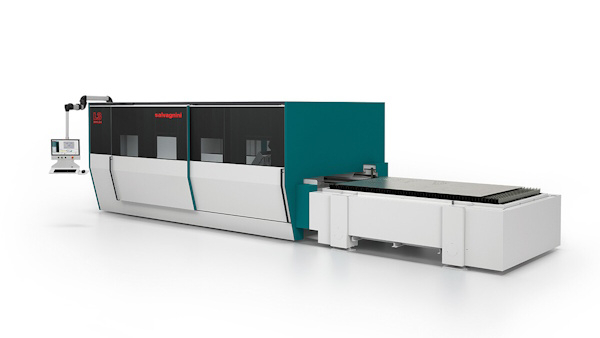

Salvagnini L3-30.G4 6 kW

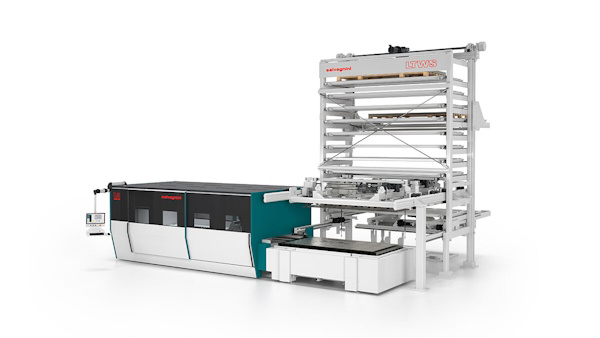

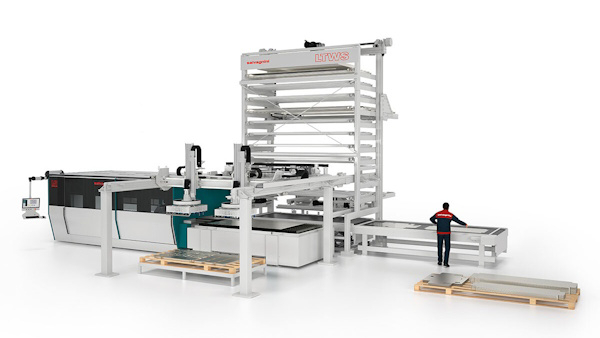

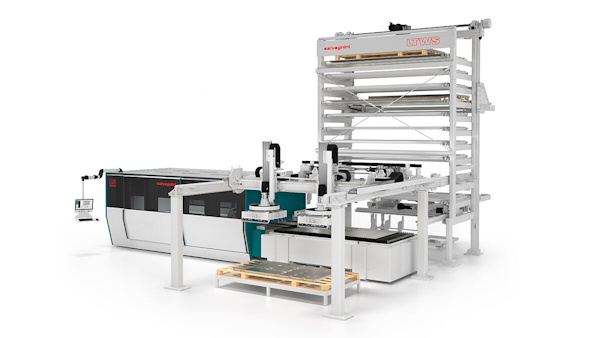

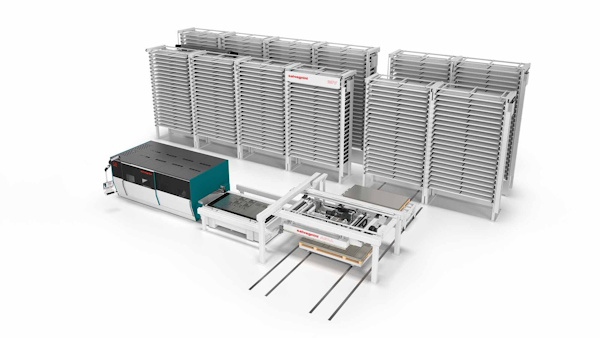

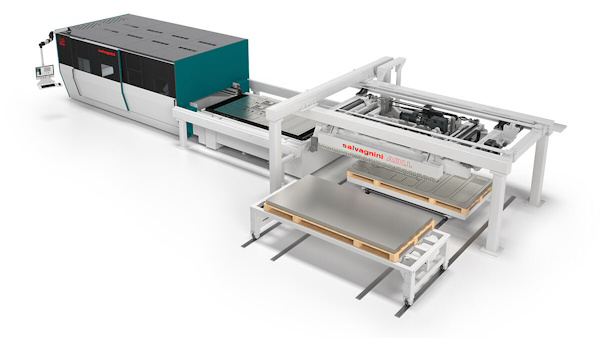

• Scalable automation: increases average equipment efficiency up to 80–90% through the integration of automatic loading systems and tower storage units.
• AVC and ACUT resource efficiency: minimizes operating costs by reducing compressed air consumption and enabling cutting with air instead of nitrogen.
• Single optical head: allows processing of any metal across the entire thickness range without manual adjustments, eliminating downtime for machine changeover.
• Unique gantry portal architecture: guarantees the operator unobstructed access to the work area, ensuring high rigidity and machining precision.

Parameter	Value
Working area along the X and Y axes	3048 x 1524 mm
Travel along the Z axis	160 mm
Maximum X-Y traverse speed	170 m/min
Positioning accuracy ($P_a$)	0.05 mm
Average positioning range ($Ps$)	0.03 mm
Minimum sheet thickness	0.5 mm
Max. thickness: Steel	25 mm
Max. thickness: Stainless steel	20 mm
Max. thickness: Aluminum	20 mm
Max. thickness: Copper	8 mm
Max. thickness: Brass	8 mm
Maximum power consumption	28 kW
Average power consumption	16 kW

Salvagnini is one of the world’s pioneers in fiber technologies, creating high-performance 2D cutting systems based on many years of experience and unique patented solutions. The proprietary “Salvagnini formula” combines powerful laser sources with intelligent sensors and adaptive automation, making it possible to raise production efficiency to a record 90%. As a leader in digital transformation, the company offers comprehensive ecosystems for “smart factories”, seamlessly integrating equipment into ERP systems for maximum production transparency. Salvagnini equipment represents a flexible and environmentally friendly solution that respects the operator’s work and ensures minimum cost per part.
Salvagnini L3.G4
