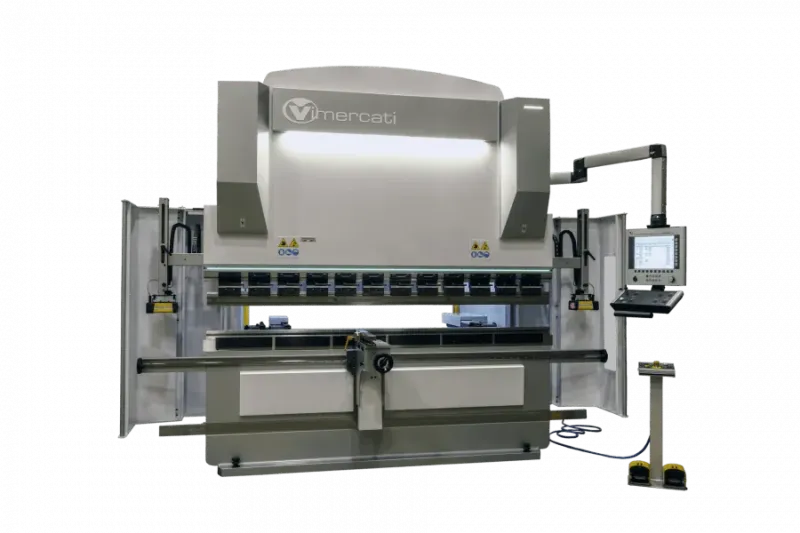

Vimercati PHSY 10030
The hydraulic synchronized press of the PHSY 10030 series is designed for processing metals up to 3 mm thick. It was developed back in 2008, but remains one of the most relevant and popular. The machine is equipped with a Cybelec DNC 60 control unit. It has four controlled axes - Y1-Y2-X-R.
Useful bending depth reaches 1250 mm. The distance between the sidewalls is 1000 mm. The maximum force is 30 tons. The error in positioning accuracy is ±0.01 mm. The traverse works at a speed of 0-10 mm/s.
The PHSY 10030 series press is suitable for any highly automated production plant for:
— elements of roof structures (ridges, valleys, snow retainers);
— drainage systems;
— faсade railing details;
— cases, drawers, cabinets.
The Vimercati press is highly productive. Machine power 7.5 kW. Its height is 3,000 mm, width – 2000 mm, and the length – 3650 mm.
| MAX THICKNESS, MM | 3 |
| MOTOR POWER, KW | 7.5 |
| WEIGHT, KG | 10500 |
| HEIGHT, MM | 3000 |
| LENGTH, MM | 3650 |
| WIDTH, MM | 2000 |

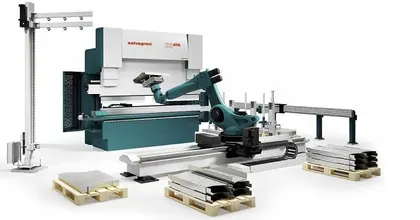

Salvagnini ROBOformER
Salvagnini is the first company to adopt the concepts of lean manufacturing by developing automatic and totally flexible processing systems; and the first to introduce a totally automatic press-brake cell run by a single controller and a single program.
Popular model

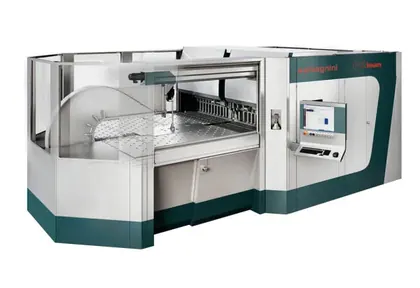

Salvagnini P2 - 2120
Popular model
