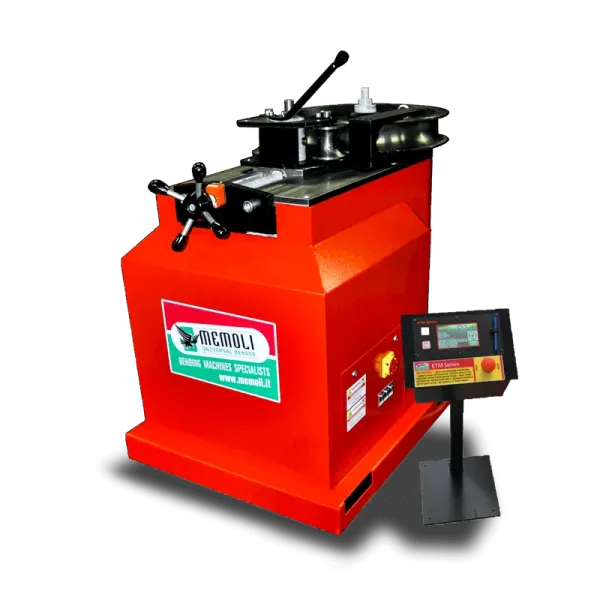

Memoli ETM 120
Mūsu cauruļu liekšanas mašīna ETM 120 ir aprīkota ar modernākajām tehnoloģijām cauruļu un profilu liekšanai ar serdeni vai bez tā un ar speciālu ierīču palīdzību spēj liekt gan labajā, gan kreisajā virzienā.
It allows to bend tubes with a range diameter up to 114 x 8 mm and it can make curves over 180° with top finish quality.
This machine is manufactured from single steel block and the tools are machined from solid steel. It can also have the option of fitting hydraulic vice and positioner.
The system of counter formers is specifically designed to reduce mechanical effort and to make the bending operation faster than other brands machines of the same category, thus granting a very good finishing even when bending very thin wall thicknesse.
ETM ROTARY DRAW BENDER SOFTWARE
Every ETM series machine is supplied with the “Digital Bend Programming Touch Screen 2” special software, extremely easy to use due to the intuitive “Touch” screen.
Thanks to the latest generation technologies it is possible to access main features as:
- Storage of 49 programs, each of them with a 8-stop sequences in the bending operation
- Calculation of the machine maximum bending capacities with reference to the material size to be bent
- Graphic of the minimum bending radii
- Setting of springiness material estimate (springback)
- Bend counter
- Remote connection “Industry 4.0”
Some more functions:
- Working mode: either manual or automatic
- 100 MB hard disk
- Alarm diagnosis
- Maintenance notice
| SPECIFIKĀCIJA | ETM 120 |
|---|---|
| Motora jauda | KW 7,5 |
| Rotācijas ātrums * | 0–5 g/1’ * |
| Gears | Eļļas vanna |
| Svars | 1800 kg |
| Izmērs | 1300 x 750 x 1250 h. |
Maksimālā ietilpība (mm)
| MATERIĀLS | ETM 120 |
|---|---|
| FE 430 | 114 x 8 |
| Alumīnijs | 140 x 7 |
| INOX AISI 304 | 114 x 6 |
| Cietais stienis FE 430 | 85 |
| Kvadrātveida caurule FE | 110 x 5 |
